- TNL Type(old)
-
- TNL 6810 TYPE
- TNL 6010 TYPE
- TNL 5411 TYPE
- TNL 7011 TYPE
- TNL 6012 TYPE
- TNL 6212 TYPE
- TNL 6812 TYPE
- TNL 9014 TYPE
- TNL 6014 TYPE
- TNL 6515 TYPE
- TNL 6016 TYPE
- TNL 6816 TYPE
- TNL 8017 TYPE
- TNL 6518 TYPE
- TNL 7518 TYPE
- TNL 6820 TYPE
- TNL 7520 TYPE
- TNL 7525 TYPE
- TNLS 7525 TYPE
- TNL 7528 TYPE
- TNL 1030 TYPE
- TNL 8037 TYPE
- TNL 1035 TYPE
- TNL 8040 TYPE
- TNL 1050 TYPE
- TNL 1060 TYPE
- TNL 1080 TYPE
- TNL 13080 TYPE
FEATURES
- Surface Mounted Type (SMD Type).
- Compact deaign (1.0~9.0 mm).
- Provided with embossed Carrier Tape packing.
- TNL series / IN BOARD stlye
- Excellent Performance and Cost Effective.
APPLICATIONS
- White LED. DC/DC Converlar power of Digital still camera.
- DC/DC Converter, LED bcklight of Camcorder.
- other.
OPERATING TEMPERATURE RANGE
-Operating terperature range includes self-temper ature rise (-40℃ ~ +125℃)
- The storage temperature range is for after circuit boardis mousted (-40℃ ~ +125℃)
CURRENT CHARACTERISTIC CONDITIONS
. Isat : D.C. Current at which the Inductance drops 20%(MAX) from its value without current
. Irms : D.C. Current for temperature rise ΔT=40℃ above 20℃ ambient. (Current that causes the speccified temperature rise from 25℃ ambient. This information is for reference only and does not represent absolut maximum rating. Temperature derating curves. Temperature rise is highly dependent on many factors including pcb land pattern, trace size, and proximity to other componets. Therefore temperature rise should be verified in application conditions.)

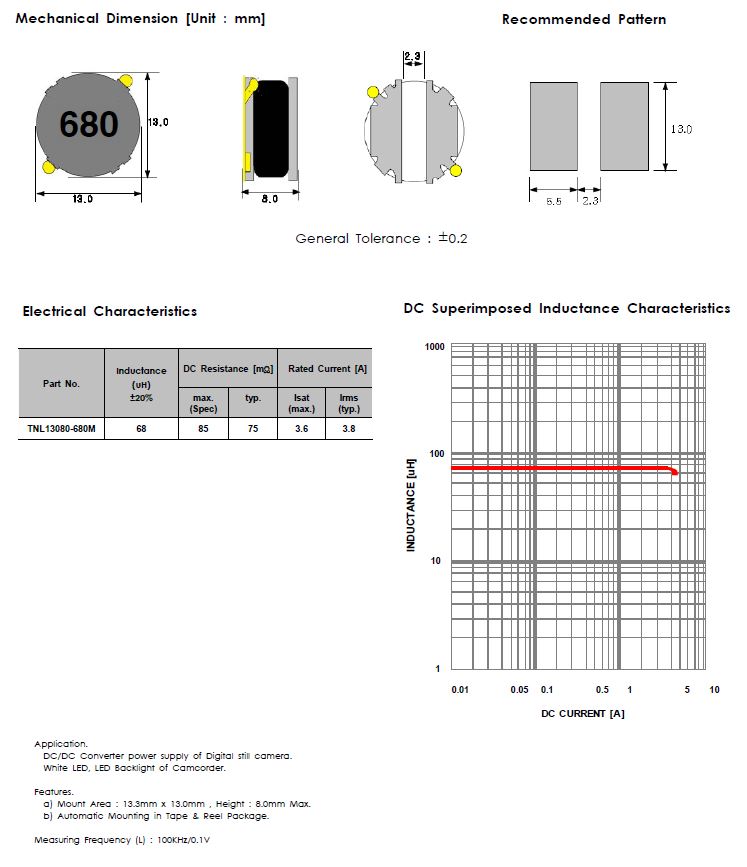

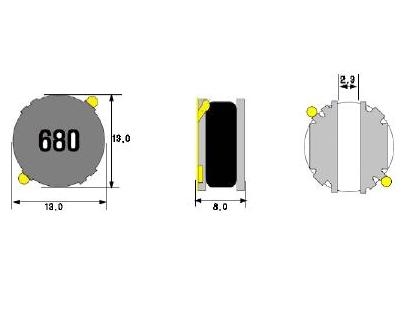

TNL 13080 TYPE
