FEATURES
. Surface Mounted Type (SMD Type).
. Compact design (1.0∼9.5 mm).
. Provided with embossed Carrier Tape packing.
. Low D.C. Resistance and High Current handling.
APPLICATIONS
. White LED, DC/DC Converter power supply
of Digital still camera.
. DC/DC Converter, LED backlight of Camcorder.
. Main power supply DC/DC Converter of LCD TV.
. DC/DC Converter of Set-Top-Box.
. DC/DC Converter of Car Navigation & GPS system.
. DC/DC Converter of MP3 player, PMP, PSP.
. Home-automation systems.
PERATING TEMPERATURE RANGE
. Operating temperature range includes
self-temperature rise (-40℃ ~ +125℃)
. The storage temperature range is for after
the circuit board is mounted (-40℃ ~ +125℃)
CURRENT CHARACTERISTIC CONDITIONS
. Isat : D.C. Current at which the Inductance drops 30%(MAX) from its value without current
. Irms : D.C. Current for temperature rise ΔT=40℃ above 20℃ ambient. (Current that causes the speccified temperature rise from 25℃ ambient. This information is for reference only and does not represent absolut maximum rating. Temperature derating curves. Temperature rise is highly dependent on many factors including pcb land pattern, trace size, and proximity to other componets. Therefore temperature rise should be verified in application conditions.)

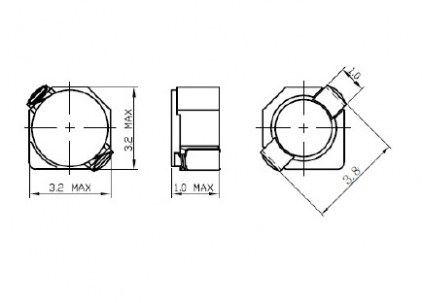

TSL 2D09 TYPE(old)
(1).jpg)
