FEATURES
. Surface Mounted Type (SMD Type).
. Compact design (1.2∼4.0 mm).
. Provided with embossed Carrier Tape packing.
. Excellent heat dissipation and High Current handling.
. Low D.C. Resistance
. Excellent Performance and Cost Effective.
APPLICATIONS
. White LED, DC/DC Converter power supply of Digital still camera.
. DC/DC Converter, LED backlight of Camcorder.
. DC/DC Converter of Notebook computer.
. other.
OPERATING TEMPERATURE RANGE
. Operating temperature range includes
self-temperature rise (-40℃ ~ +125℃)
. The storage temperature range is for
after the circuit board is mounted (-40℃ ~ +125℃)
CURRENT CHARACTERISTIC CONDITIONS
. Isat : D.C. Current at which the Inductance drops 20%(MAX) from its value without current
. Irms : D.C. Current for temperature rise ΔT=40℃ above 20℃ ambient. (Current that causes the speccified temperature rise from 25℃ ambient. This information is for reference only and does not represent absolut maximum rating. Temperature derating curves. Temperature rise is highly dependent on many factors including pcb land pattern, trace size, and proximity to other componets. Therefore temperature rise should be verified in application conditions.)

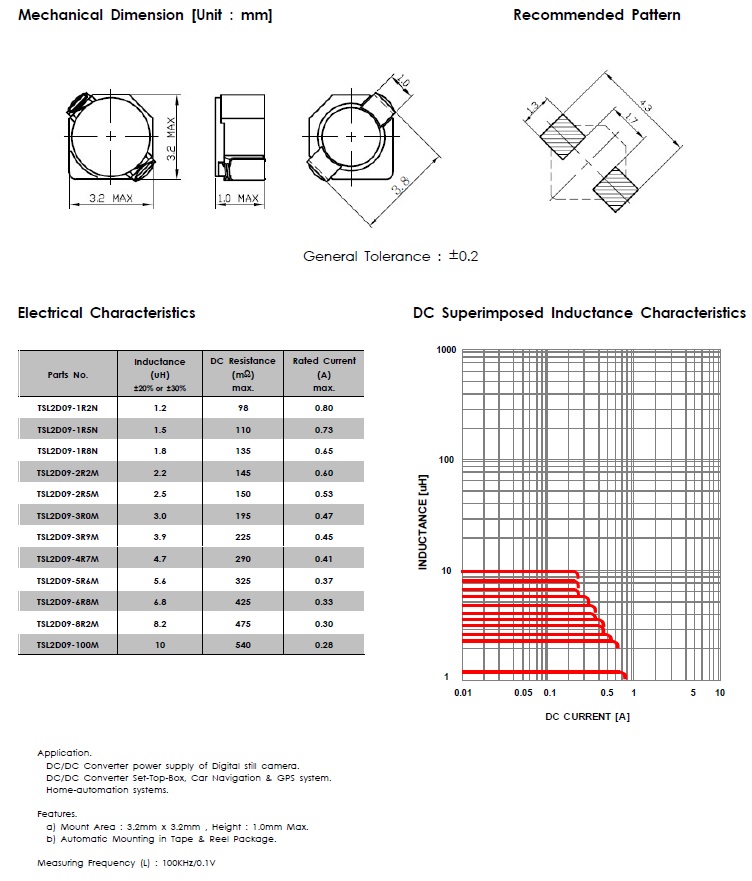

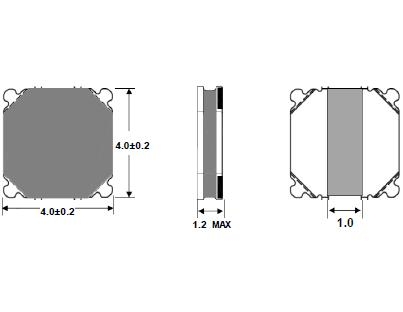

THL 4012-HP TYPE
